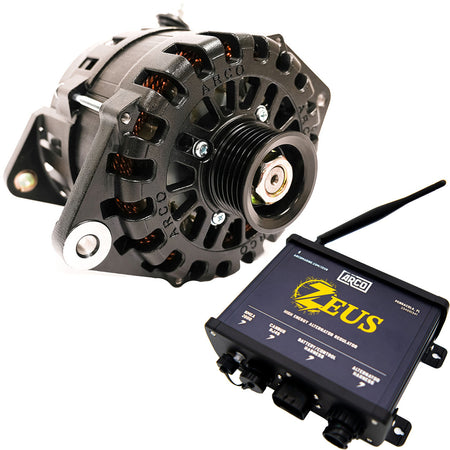

ARCO Zeus A275L Transit Alternator w/Terminal Block Zeus High-Energy Alternator Regulator [4032-AZ1000]

Zeus A275L Transit Alternator with Terminal Block & Zeus High-Energy Alternator Regulator

Zeus A275L Transit Alternator with Terminal Block

High Output / High Amperage Alternator: The Highest Power Output in Its Class.

Features:

• Replace your noisy generator!
• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat-shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds
• Reduces the need for a generator by creating additional power with your engine
• Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output
• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator
• Mercedes requires the use of a clutch pulley on secondary alternators used on all Sprinter vans. For Mercedes Sprinter, please use our N62 with Clutch Pulley here
• SAE J1171 Certified
• Models are available with internal/external voltage regulators
• Proudly made in the U.S.A.

Specifications:

• Voltage: 12V
• Field Type: P
• Rotor Poles: 16
• Stator Size: 138mm
• Frame Size: Large
• Weight: 14.9 lbs / 6.7 kg
• Regulation: Internal/External (IE) or External Only (EX)
• Output Voltage: 14.1V (default)
• Finish: (Black) Cerakote or E-coating
• Cut-In RPM: 1,061 Alternator RPM
• Maximum Alt RPM: 19,000
• Battery Post: M8 Thread Post, Side Mount
• Standard Pulley: 49K6 (6-groove, 49mm)
• Pulley Mount: 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware: M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes: 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM): 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM): 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 198 Amps
• Max Continuous Operating Temperature: 110°C / 230°F

Mounting Application:

• Replaces Ford Transit alternators for 3.5L & 3.7L Gas engines 2015-2022

Zeus High-Energy Alternator Regulator

ARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technician’s configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternator’s performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection
• Harnesses, Thermistors, and NMEA 2000 kit included
• Monitors the state of charge
• Can turn your engine into a dedicated generator with generator mode
• Pre-set battery libraries
• Data logging and sharing
• CAN bus and NMEA 2000-integrated networks
• Compatible with all voltage systems (12- 48V)
• IP66 & IP67 rated
• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"
• Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4"
• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator
• Battery wiring harness
• Alternator wiring harness
• 2 thermistors
