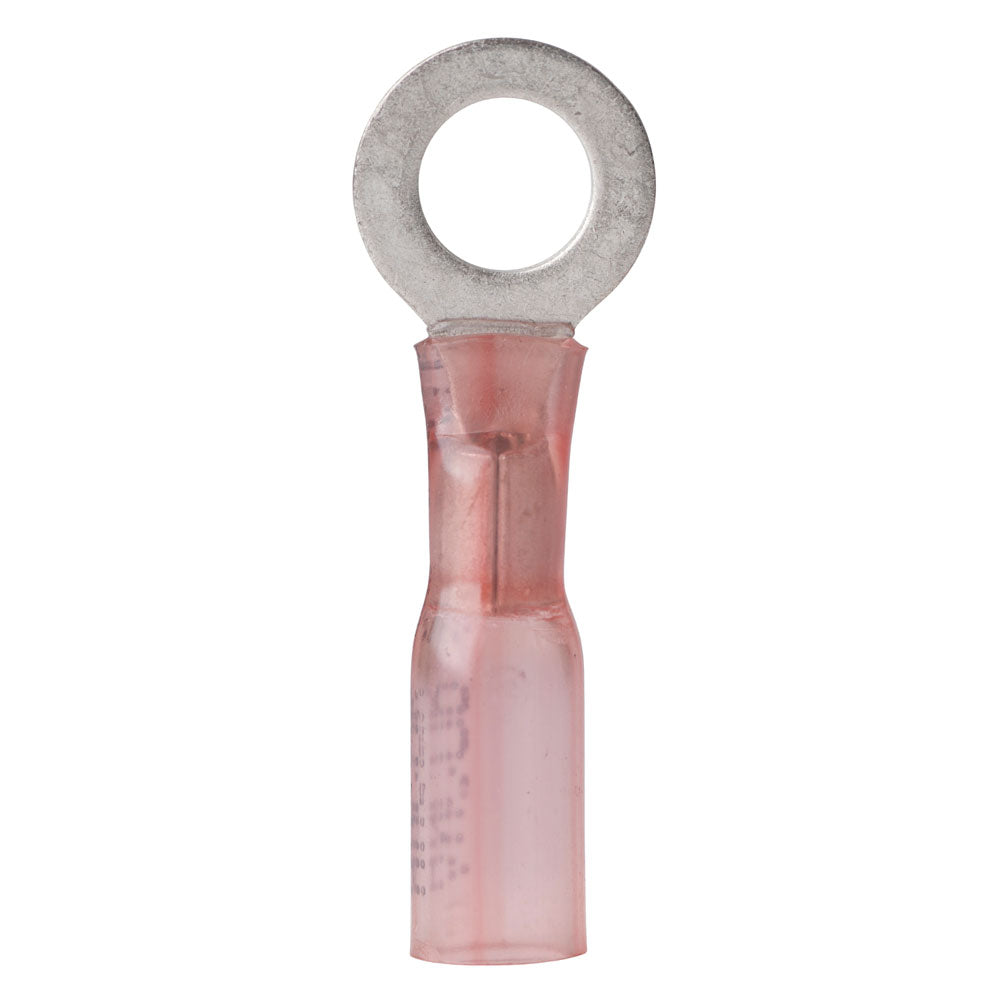

Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack [310399]

22-18 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack

Wire Range:22-18
Screw Size:#10
Quantity: 100

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257° F/125° C

• Operating temperature range 40° C to 110° C

• ANCOR heat shrink connectors offer heat activated adhesive built into
  the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Gauge: 22-18 AWG
• Type: Ring Terminals
• Post Size: #10
• Package Qty: 100
• Heat Shrink: Yes
• Box Dimensions: 1"H x 3"W x 4"L WT: 0.2 lbs
• UPC: 091887311044
