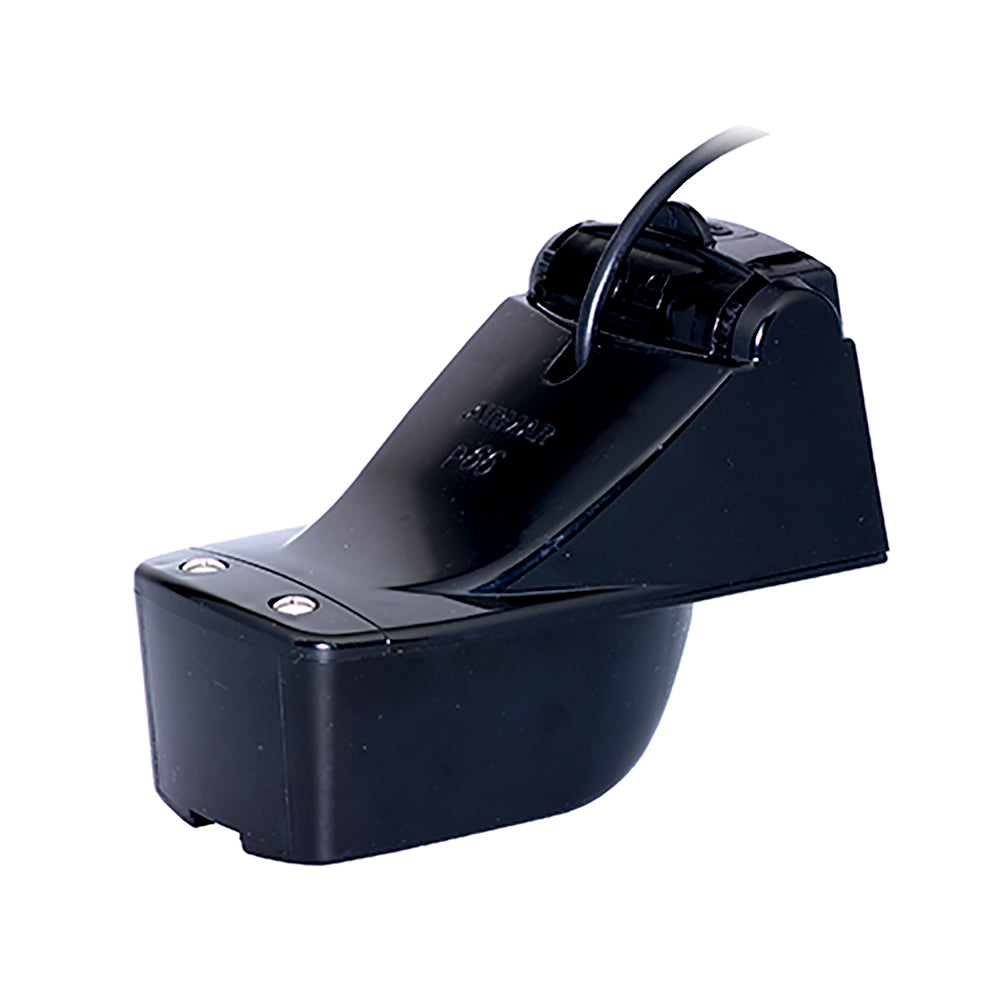

Airmar P66 Transom Mount Transducer f/Humminbird 9-Pin Units [P66-DT-HB]

SKU: 65246
(0)
$225.00
Only 1 left
Low inventory - Hurry up!

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

P66 Transom Mount Transducer f/Humminbird 9-Pin Units

Features:

  • Depth and temperature in one housing
  • Plastic kick-up bracket
  • Accommodates transom angles between 2° and 20°
  • Recessed waterflow channel protects paddlewheel
  • Transducer can be removed from bracket without the use of tools for easy service and storage
  • Boat Size: Up to 12M (40')
  • Frequency: 50/200 kHz
  • Beamwidth: 50 kHz-45°, 200 kHz-11°
  • RMS Power: 600W
  • 10M Cable


Fits: All 800, 900 & 1100 Series except 967 3D


This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Mounting Style: Transom
  • Imaging: Standard
  • Chirp: No
  • Cable Length (Feet): 32'
  • Temperature: Yes
  • Speed Included: Yes
  • Pins: 7
  • Box Dimensions: 4"H x 8"W x 11"L WT: 2.1 lbs
