Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12 [B60-12-HB]

SKU: 65251
(0)
$324.99
Out of stock

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

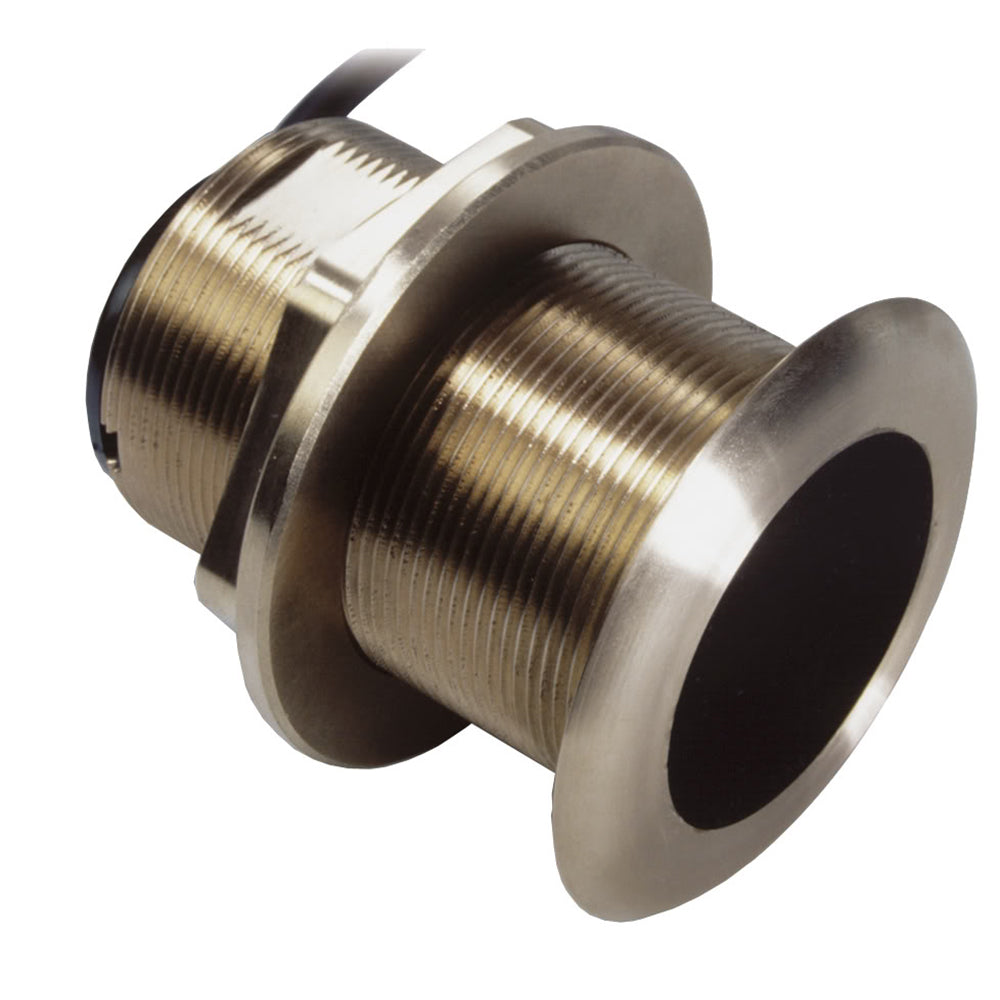

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12º

The bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.

Features:

  • Engineered for center-console and trailered boats
  • Low-profile protrusion below the hull
  • No affect on your boats running performance
  • Arrow on cap points toward keel when installed
  • Built-in temperature sensor
  • Boat Size: Up to 8M (25')
  • Bronze transducer housing

Specifications:

  • Weight: 1.4 kg (3 lb)
  • Hull Deadrise: Up to 24°
  • Acoustic Window: Urethane
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Temperature: Yes
  • Mounting Style: Thru-Hull
  • Pins: 7
  • Box Dimensions: 1"H x 5"W x 8"L WT: 0.4 lbs

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
