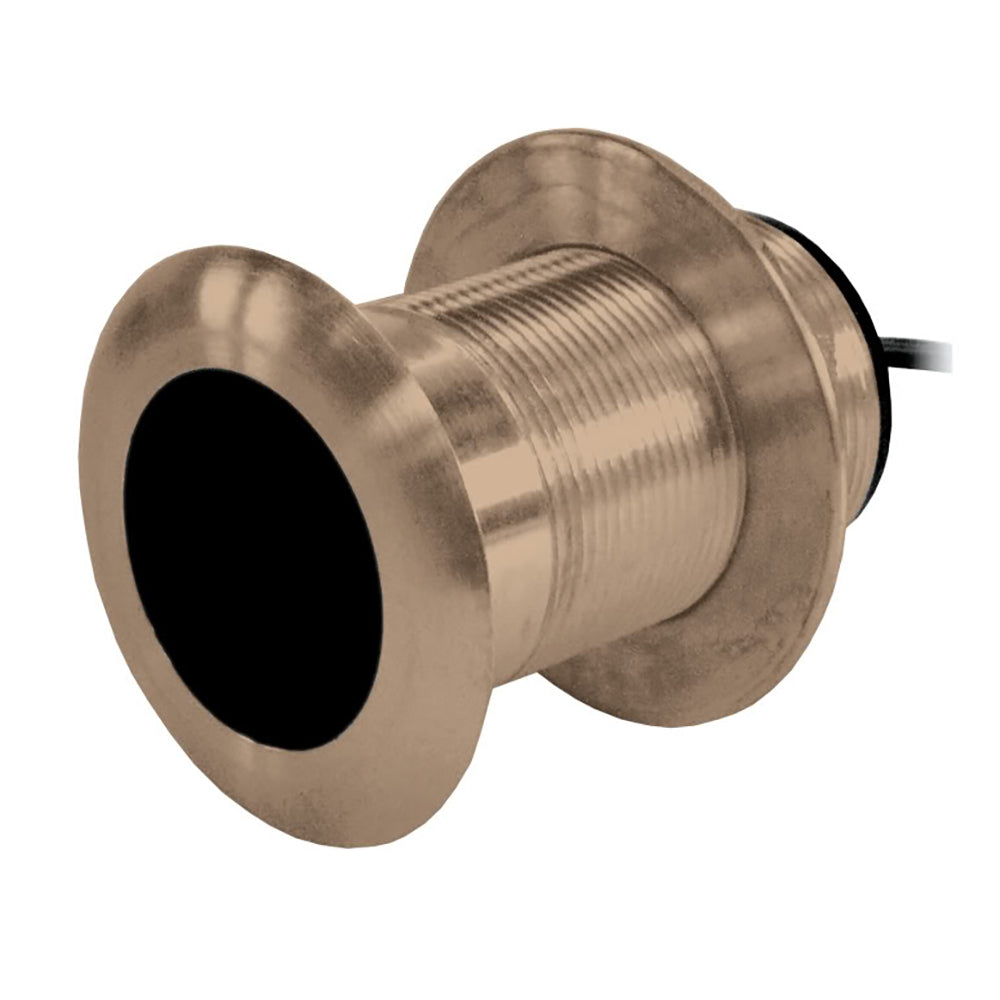

B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin

The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.

Features

  • Industry standard for low-profile transducers
  • Depth and temperature
  • Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
  • Right angle cable exit offers low headroom and protection when transducer is stepped on
  • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Housings are ABYC H-27 compliant
  • Optional temperature sensor
  • Bronze transducer housing
  • Boat Size: 8M (25') and up

Specifications:

  • Weight: Bronze - 0.9 kg (2.0 lb)
  • Hull Deadrise: Up to 8°
  • Acoustic Window: Urethane
  • Hole Diameter: 51mm (2")
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Mounting Style: Thru-Hull
  • Temperature: Yes

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
