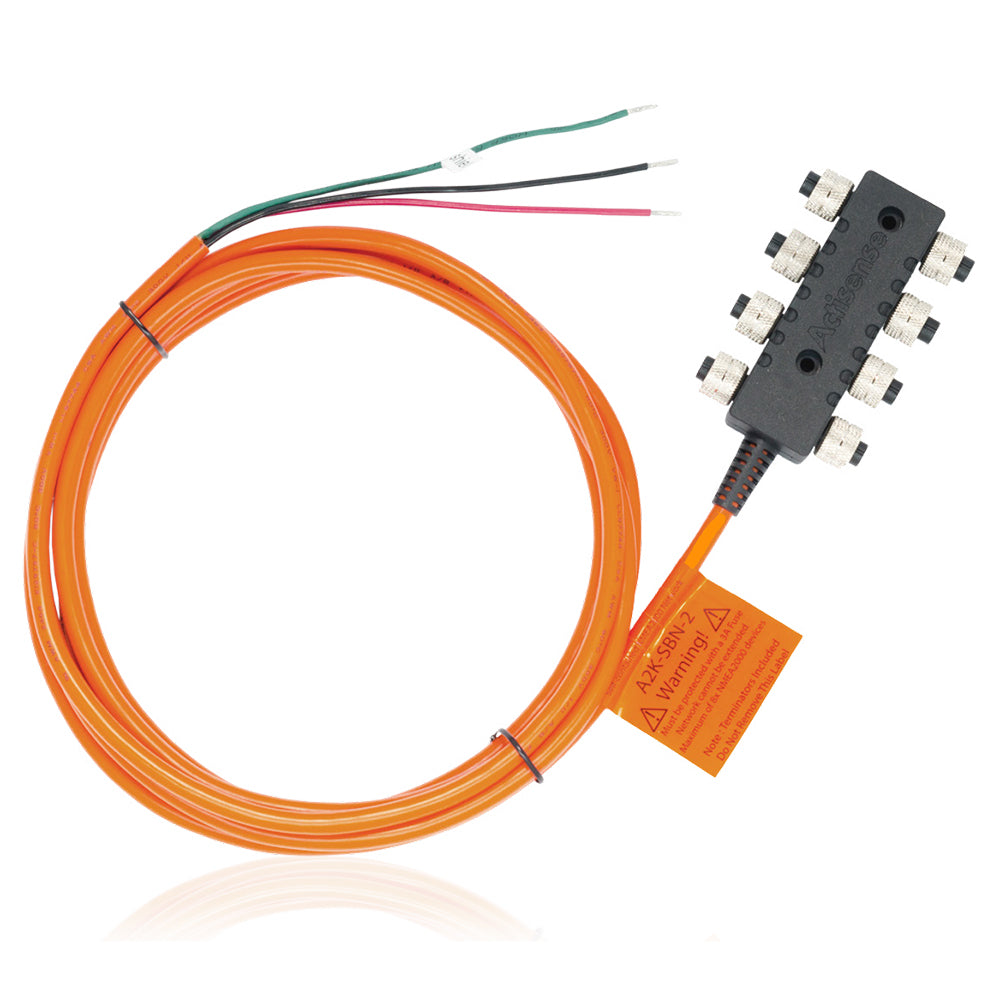

Actisense Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators Power Feed [A2K-SBN-2]

SKU: 83394
(0)
$140.33
-10% $155.92 $140.33
In stock
Usually ships within 24 hours

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed

Installing small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.

The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.

Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.

Features:

  • Self-contained NMEA 2000 Network
  • Integrated Termination Resistors
  • 8x NMEA 2000 drops
  • Ruggedized, flame retardant over-molded housing
  • Metal coupling nuts
  • Integrated EMI Shield
  • Orange, UL Rated, 3-meter power cable
  • Color coded wires, stripped and tinned
  • Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices
  • Simple installation, fewer components, more reliable, lower cost
  • Accommodates the vast majority of compact NMEA 2000 networks
  • Suitable for wet and harsh conditions- highly desirable in marine environments
  • Reliable, long lasting connections
  • Less likely to be susceptible to interference
  • UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables
  • Quick installation, no special tools required

Technical Specifications:

Electrical

  • Rated Current - 3A
  • Rated Voltage - 60 V (AC/DC)
  • Internal Termination Resistors - 2 x 120Ω 250mW

Mechanical

  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass filled), black
  • Contact Polarization - Standard M12 – “A” – polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, black
  • Housing - TPU (Halogen Free) over Epoxy filled PBT housing
  • Flammability rating - UL94 V-0
  • Internal Housing Shield - Copper foil
  • Cable Jacket Material - 0.8mm Nom. PVC, orange
  • Cable Outer Diameter - 6.8mm
  • Cable Length - 3m
  • Wire Length - 150mm (10mm stripped and tinned)
  • Wire Jacket - PVC, Red & Black
  • Wires - 16 AWG (stripped and tinned)
  • Drain - 18 AWG (34 strand tinned copper)
  • Cable Shield - Al-mylar
  • Weight - 410g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +70°C
  • Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Data Interface: NMEA 2000
  • Cable Length (Meters): 3m
  • Box Dimensions: 1"H x 6"W x 8"L WT: 0.9 lbs
  • UPC: 5060998710188

Owner's Manual (pdf)
Brochure (pdf)
