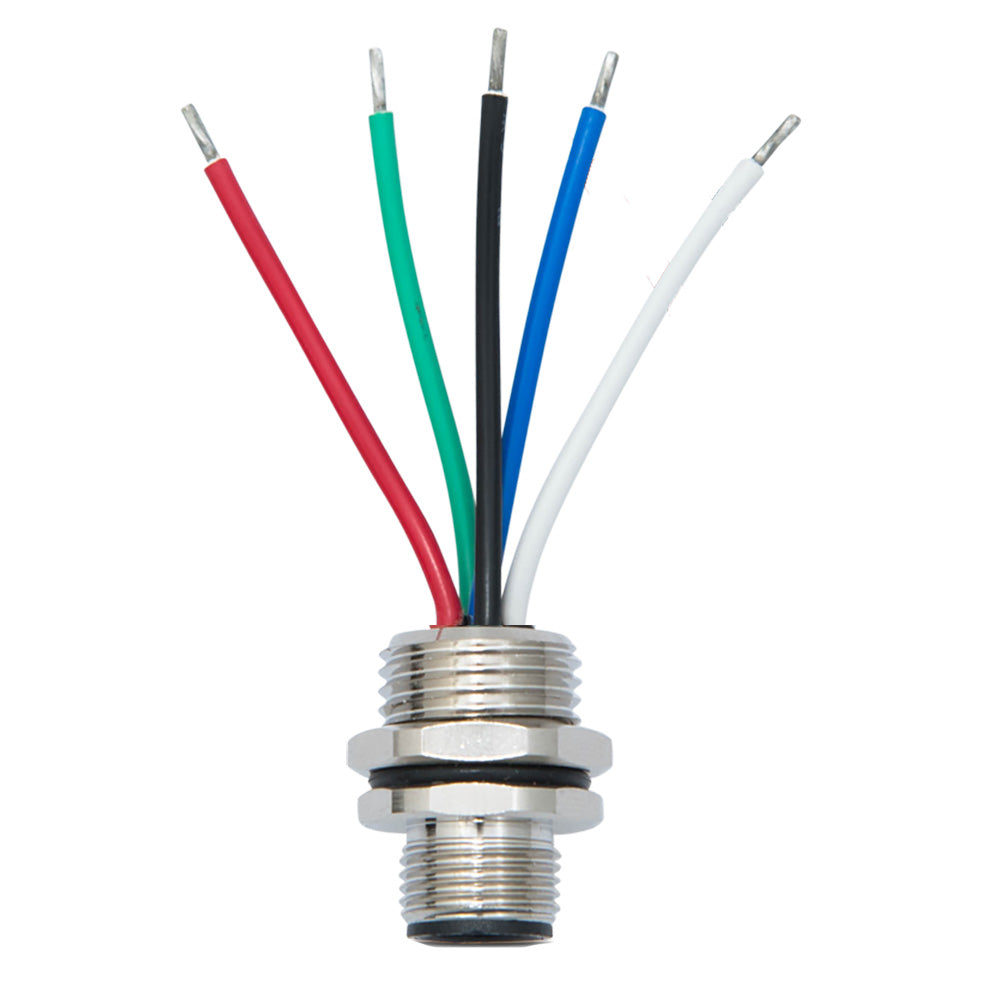

Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male [A2K-PMW-M]

SKU: 111822
(0)
$21.11
-10% $23.46 $21.11
In stock
Usually ships within 24 hours

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male

Panel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

  • Rated Current - 4A
  • Rated Voltage - 60VDC

Mechanical

  • Contacts - Brass, gold-plated
  • Contact Carrier - Nylon & GF
  • Contact Polarization - Standard M12-"A"-Polarization
  • Mating Thread - M12
  • Housing - Brass, nickel-plated
  • Mounting Thread - PG9
  • Mounting Nut - Brass, nickel plated - PG9
  • Mounting Hole Diameter - 15.3mm
  • Wires - 18 AWG (stripped and tinned)
  • Wire Jacket - PVC
  • Weight - 20g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +90°C
  • Connector Specification - Meets IEC61076-2-101
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Male
  • Data Interface: NMEA 2000
  • Box Dimensions: 1"H x 4"W x 6"L WT: 0.05 lbs
  • UPC: 5060998710164

Owner's Manual (pdf)
Brochure (pdf)
