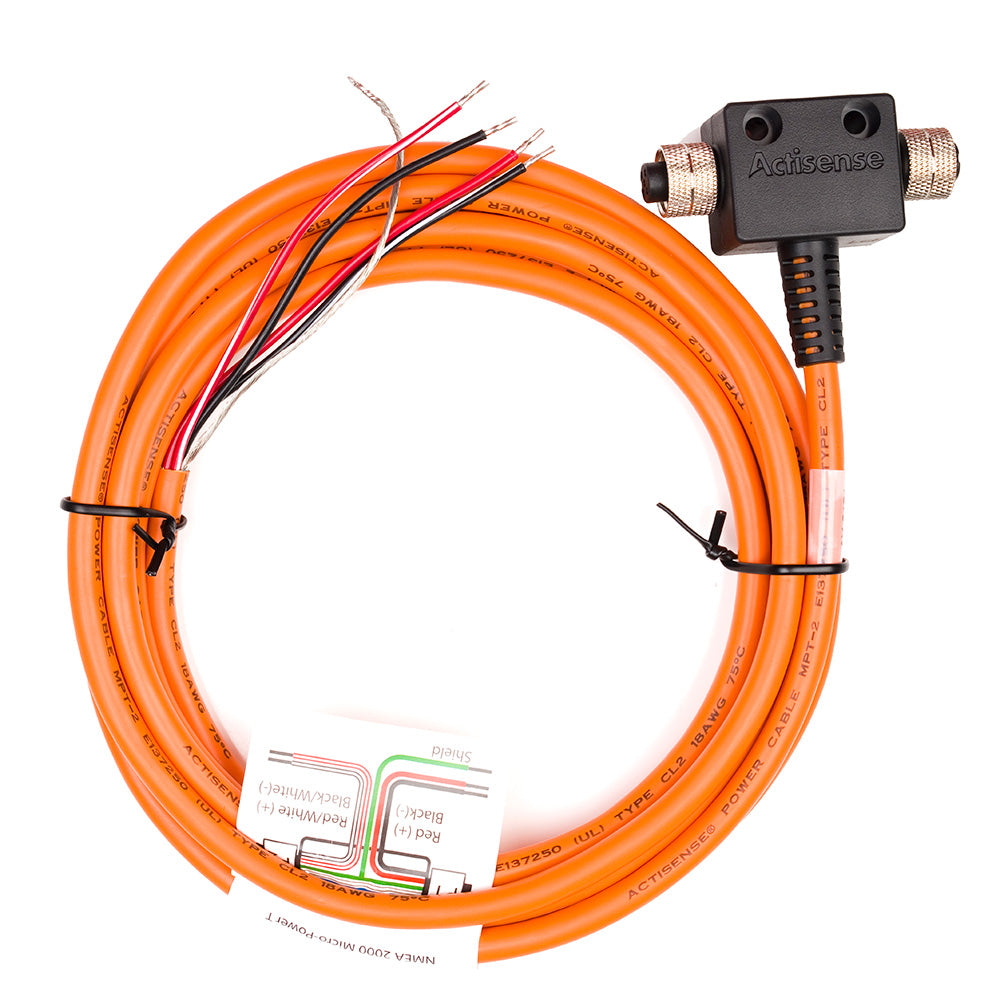

Actisense NMEA2000 Micro T-Piece w/Female Connectors 3M UL Certified Cable [A2K-MPT-2]

SKU: 111804
(0)
$45.00
-10% $50.00 $45.00
Only 2 left
Low inventory - Hurry up!

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

  • Rated Current - 4A (each feed)
  • Rated Voltage - 60VDC

Mechanical

  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass Filled), Black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, black
  • Housing - PVC, black
  • Cable Jacket Material - 0.8mm Nom. PVC, orange
  • Cable Outer Diameter - 6.7mm ±0.254mm
  • Cable Length - 3M
  • Wire Length - 100mm (7mm stripped)
  • Wire Jacket - PVC
  • Wires - 18 AWG (stripped and tinned)
  • Drain - 18 AWG (34-strand tinned copper)
  • Shield - Al-mylar
  • Weight - 290g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -20°C to +70°C
  • Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Female-Female
  • Data Interface: NMEA 2000
  • Cable Length (Meters): 3m
  • NMEA 2000 Connectors: Tee Connectors
  • Box Dimensions: 1"H x 6"W x 7"L WT: 0.65 lbs
  • UPC: 5060998710140

Owner's Manual (pdf)
Brochure (pdf)
