YANMAR MARINE 3YM30AE

(0)
$14,559.00
Only 1 left
Low inventory - Hurry up!

Got questions?

For engine parts which show "IN STOCK" & "On backorder" They are available for transfer. 2-3 Week Lead time.

We advise you get in touch

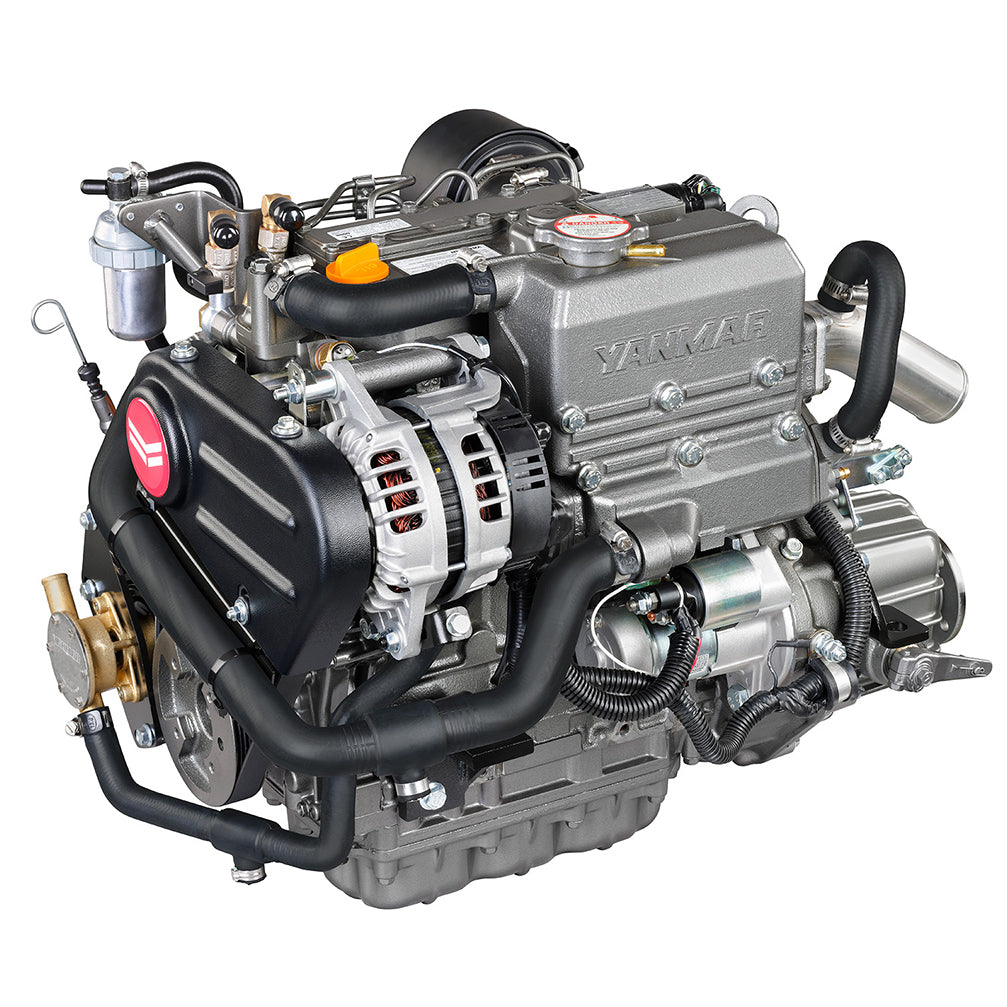

The YANMAR 3YM30AE is a naturally aspirated 3-cylinder engine that comes with either a marine gear or sail-drive unit, making it ideal for use on sailboat crafts.

Reliable and Easy to Maintain

Providing essential advantages such as effortless upkeep, minimal sound, dependability, and long-lastingness. The YM series of mechanical engines are engineered for use on smaller sailboats and other leisure vessels.

The YM series has a straightforward design for easy accessibility on smaller boats, making maintenance a breeze. These engines are also constructed for durability, making them a top choice for both new installations and repowering. They boast quiet operation and low emissions, conforming to EPA Tier 3 marine regulations since 2009.

Features

  • An ideal solution for smaller recreational boats, the YM series diesel engines are four-stroke, swirl pre-combustion chamber units equipped with liquid coolant systems.
  • All naturally aspirated, the full range of 2-cylinder and 3-cylinder models feature indirect injection, in-line pump combustion systems.
  • The engines are equipped with a marine gear or sail drive unit.
  • The YM series of mechanical, lower output engines complements the largest common rail recreational and light-duty commercial diesel engine line-up on the market.

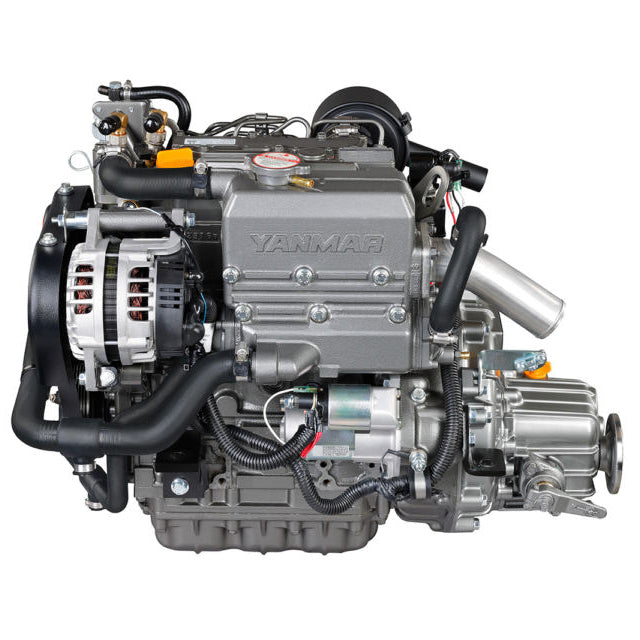

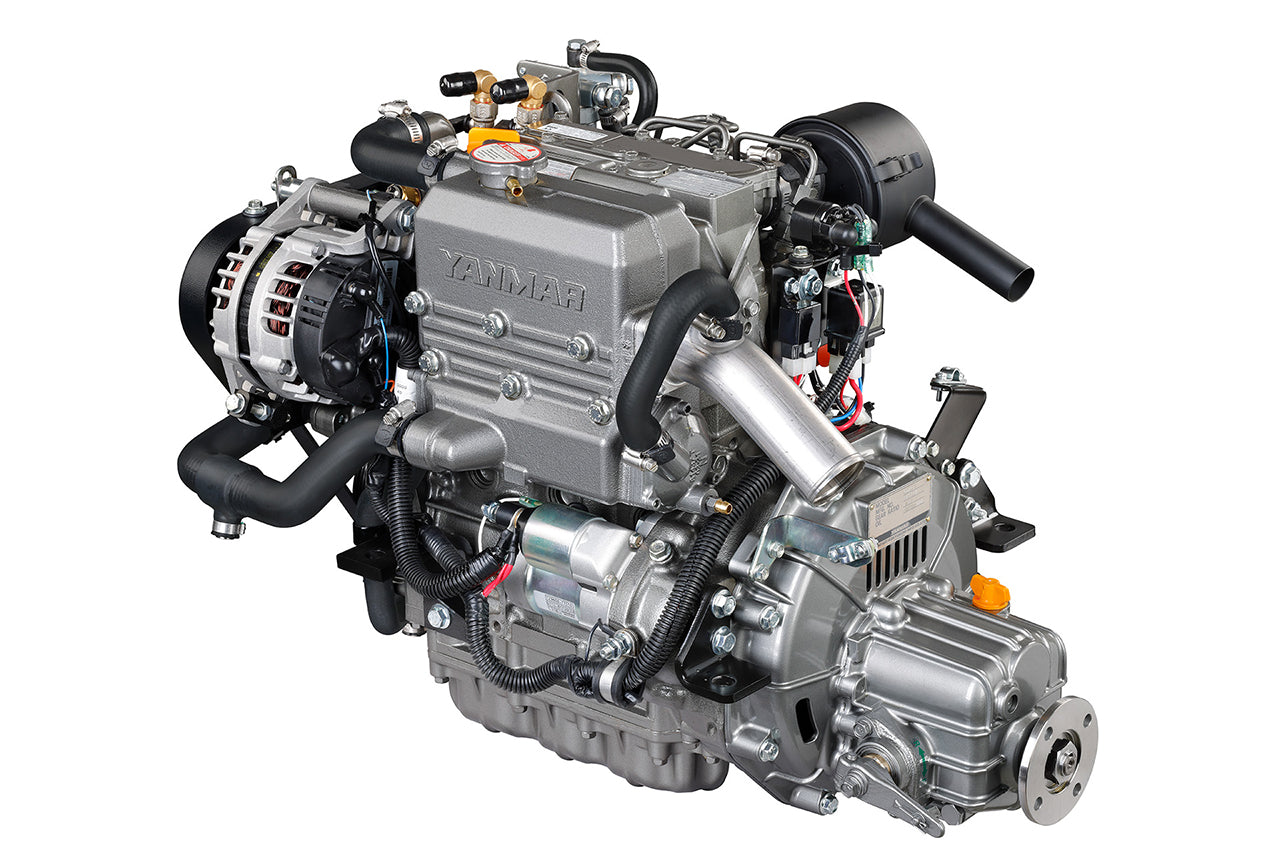

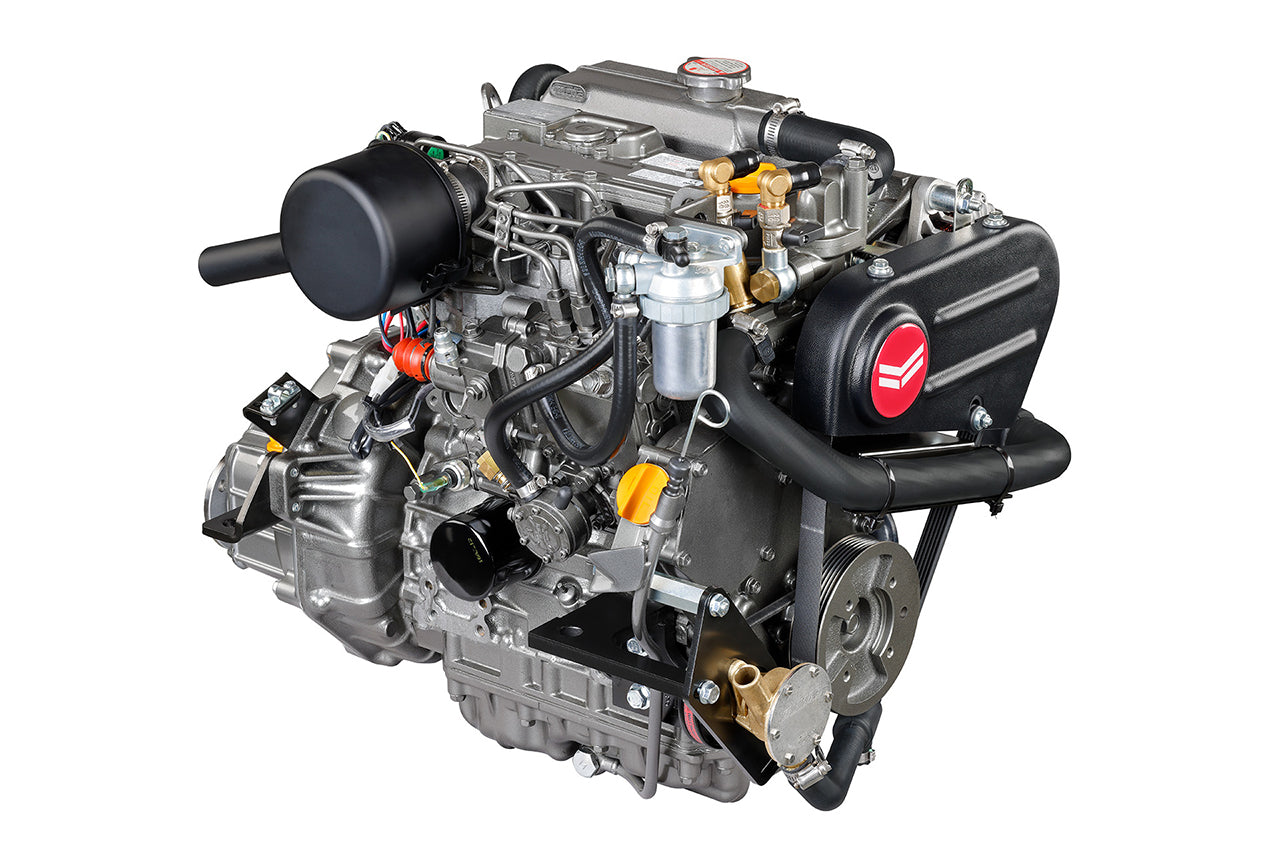

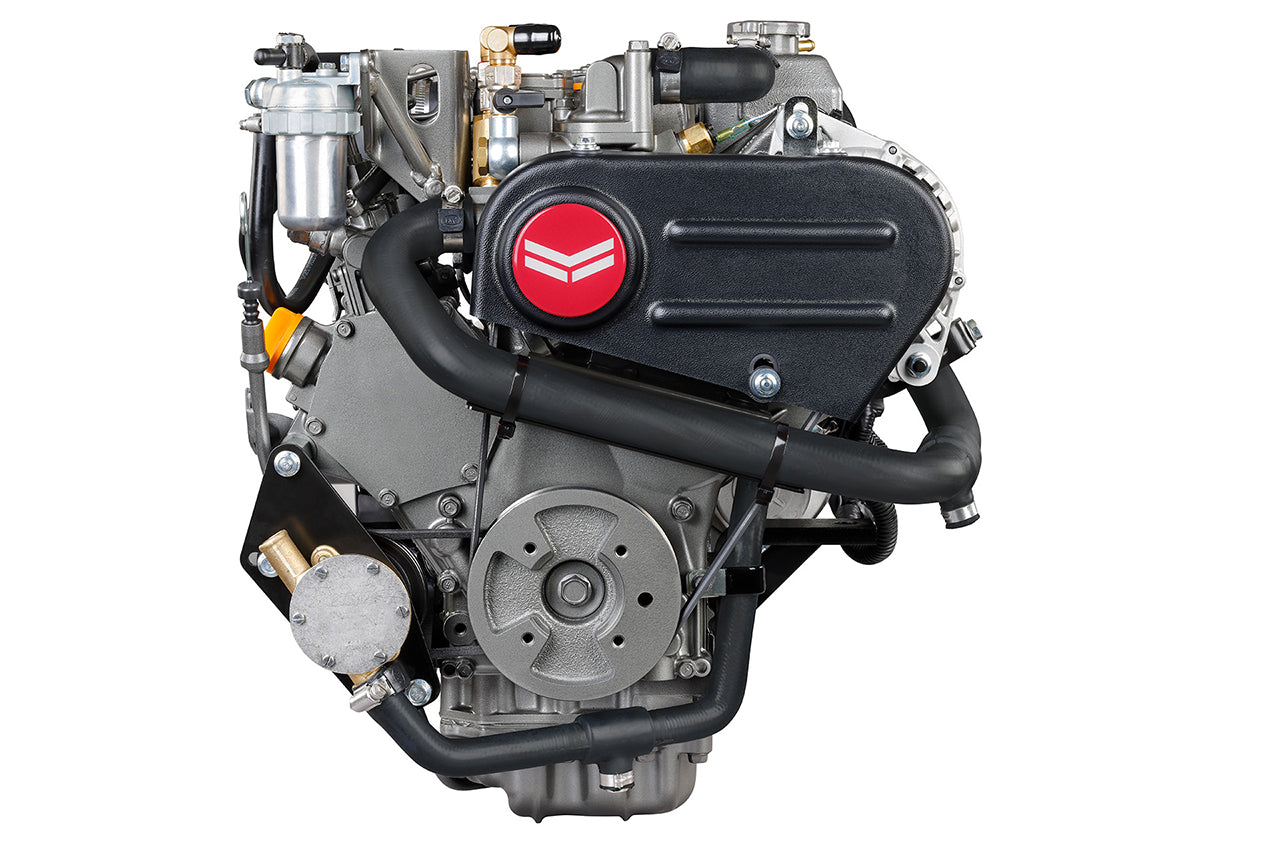

(Optional Transmissions and Drives shown in images)

Standard Engine Package Includes

  • Exhaust mixing elbow [L-type]
  • Alternator 12V – 125A
  • B20 panel
  • Flexible mounts
  • Expansion tank for fresh water cooling system
  • Electric stop solenoid
  • Belt safety cover

Specifications

Rated output 21.3 kw / 29.1 mhp
Rated Speed 3200 rpm
Displacement 1.266 L / 77 cu. in
No. of cylinders 3 cylinders
Cylinder Bore x Stroke 80 mm x 84 mm / 3.15 in x 3.31 in
Combustion system Indirect Injection, In-line Pump
Aspiration Natural
Alternator 12V - 125A
Dry weight without gear 127 kg / 280 lbs

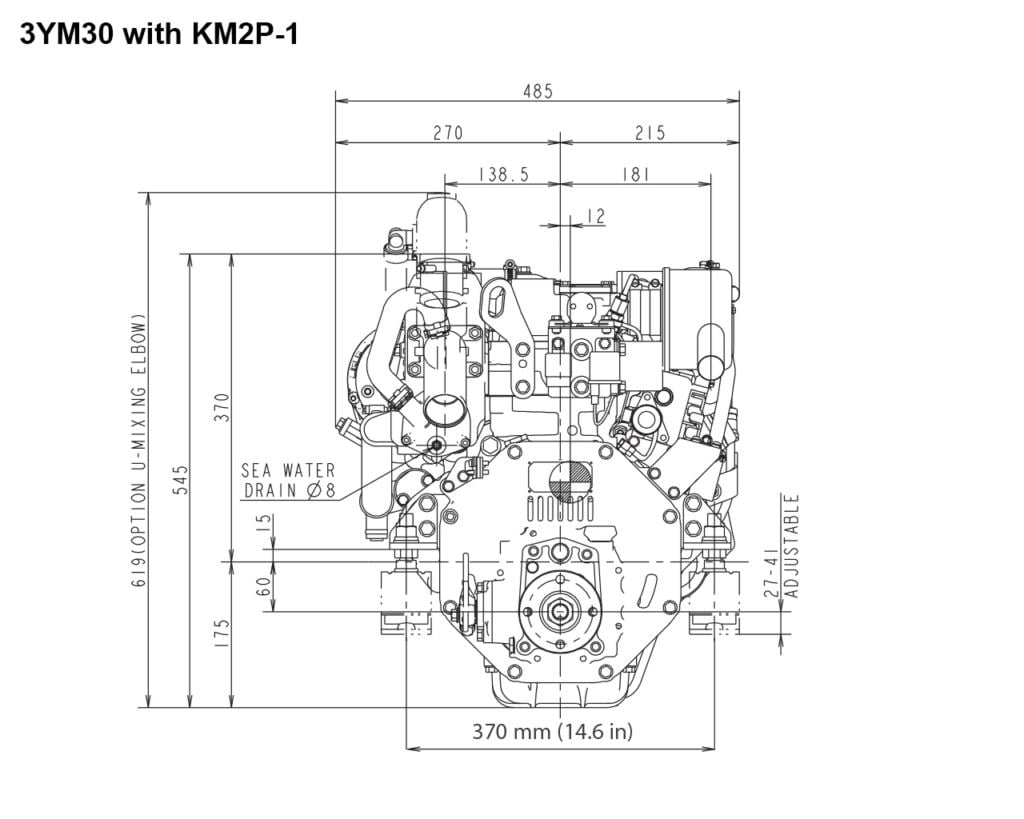

Dimensions 715 mm x 485 mm x 545 mm
Controls Mechanical
Certifications RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC


NOTES:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)

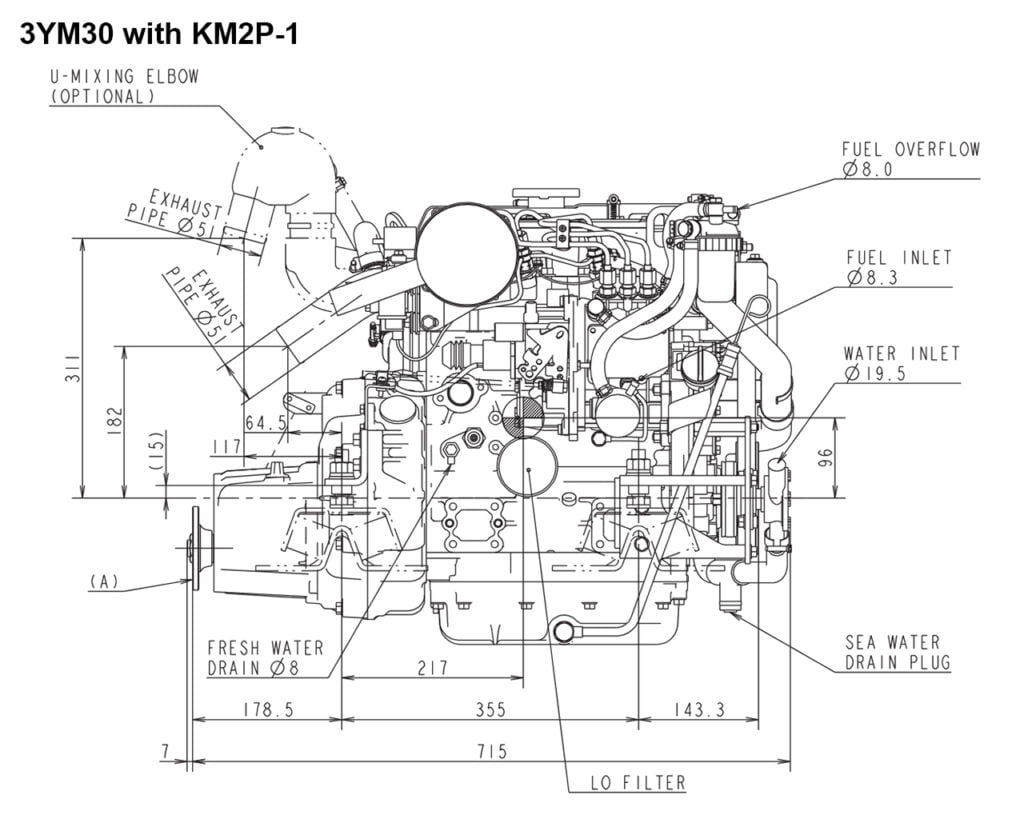

Length includes KM2P-1 marine gear
(Dimensions may vary with other gears/elbow)





Most in stock items ship within 1 business day.

For engine parts showin "IN STOCK" as well as "On backorder" this means they are available for transfer from the listed warehouses in Miami (3-5 Day Lead) or Spain (2-3 Week Lead).

We advise you get in touch

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Buy in bulk

Variant Quantity Price Total
Bobtail - NO TRANSMISSION
$14,559.00
$0.00
$14,559.00
$0.00
KM2P Ratio 2.21 3YM30AE-1
$16,660.00
$0.00
$16,660.00
$0.00
KM2P Ratio 2.62 3YM30AE-2
$16,660.00
$0.00
$16,660.00
$0.00
V-Drive ZF15 IV Ratio 2.13 3YM30AE-3
$26,171.00
$0.00
$26,171.00
$0.00
V-Drive ZF15 IV Ratio 2.99 3YM30AE-4
$26,171.00
$0.00
$26,171.00
$0.00

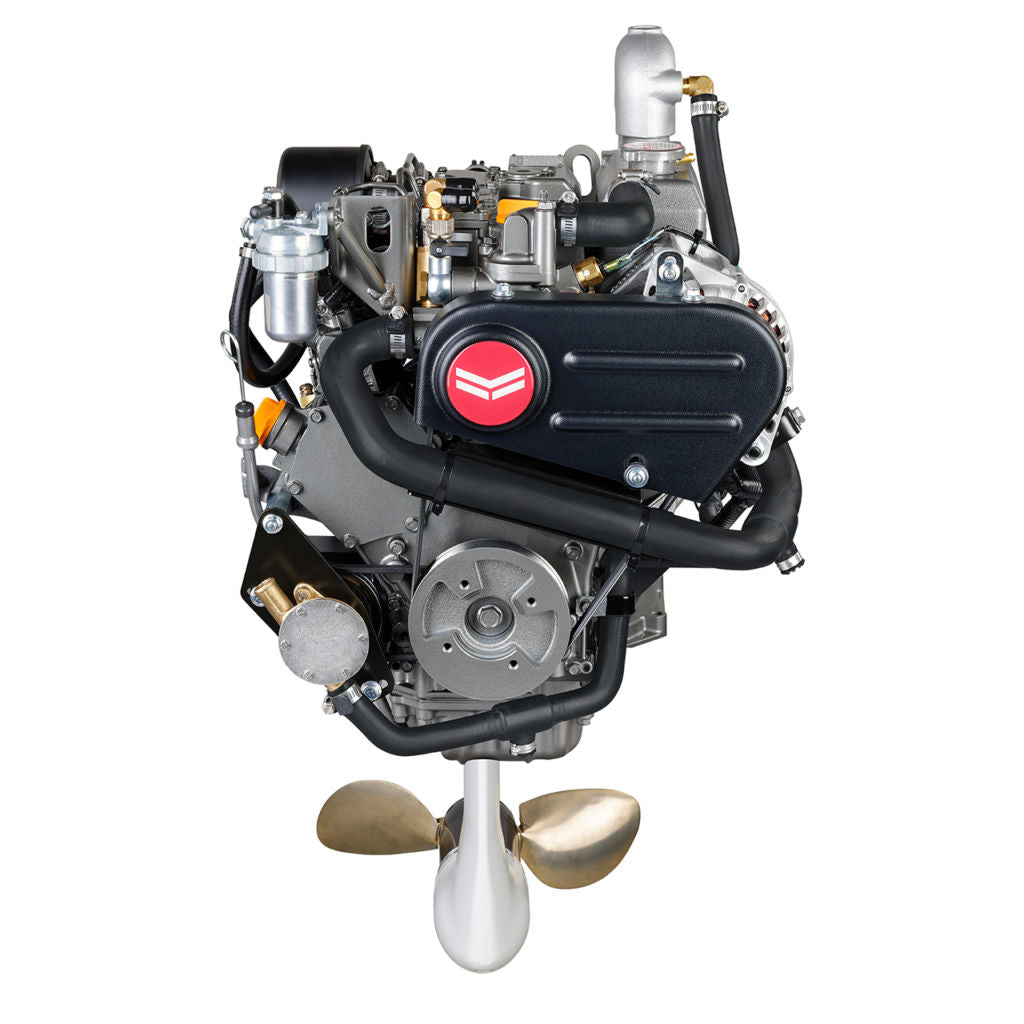

SD SAIL DRIVE 2.64 3YM30AE-5
$20,048.00
$0.00
$20,048.00
$0.00
