YANMAR 2YM15

SKU: 2YM15
$11,472.00
Transmission

Fill in the form below, and we'll get back to you with more information as soon as possible.

Accepted payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We accept a variety of trusted payment methods.

Got questions?

Feel free to get in touch

...or just ask an expert!

Video chat Chat Email +1 562-598-6611

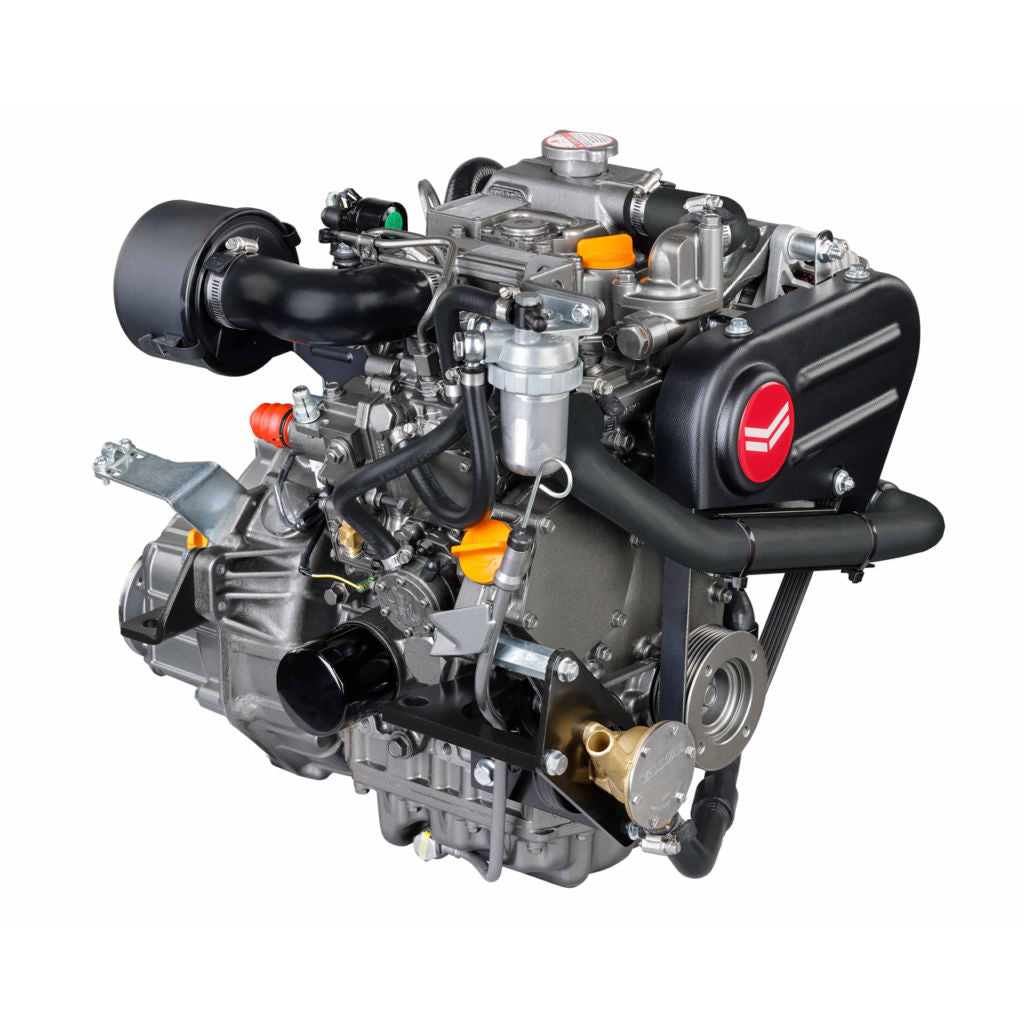

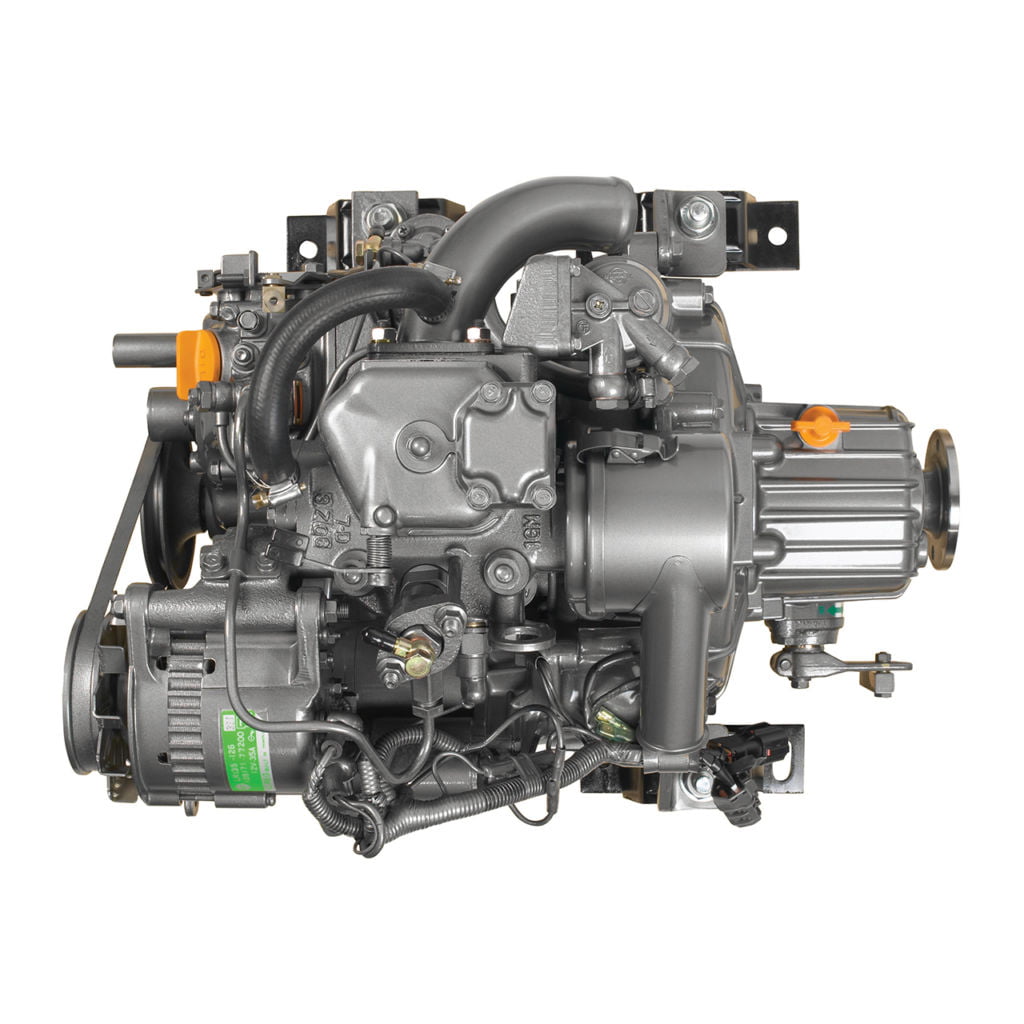

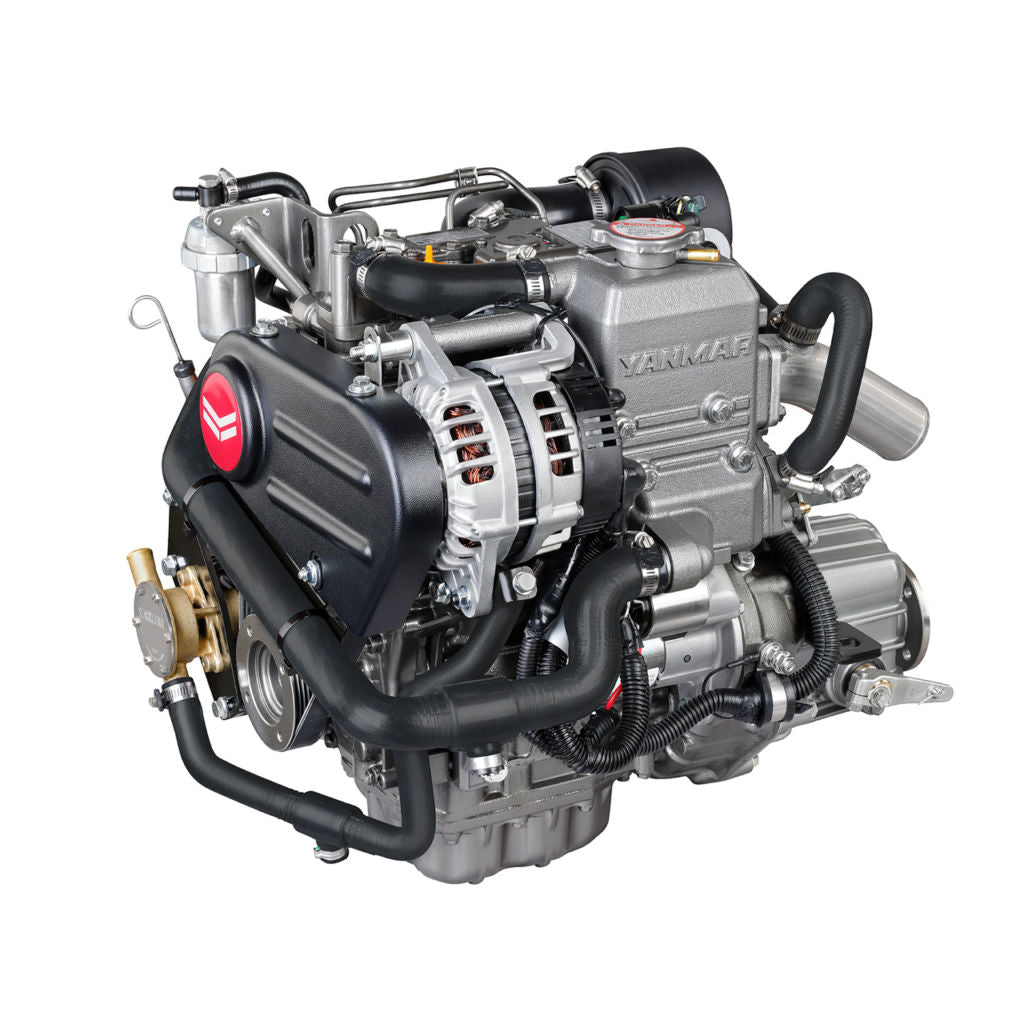

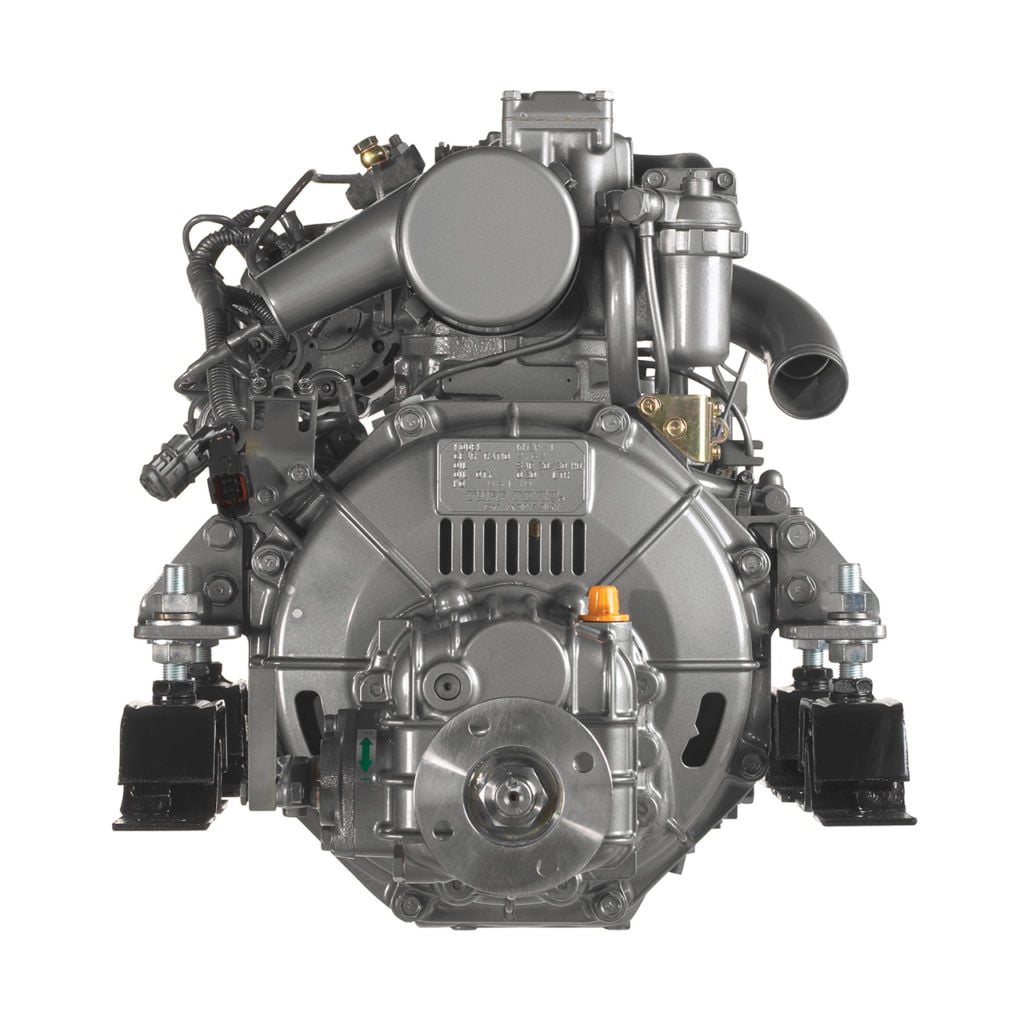

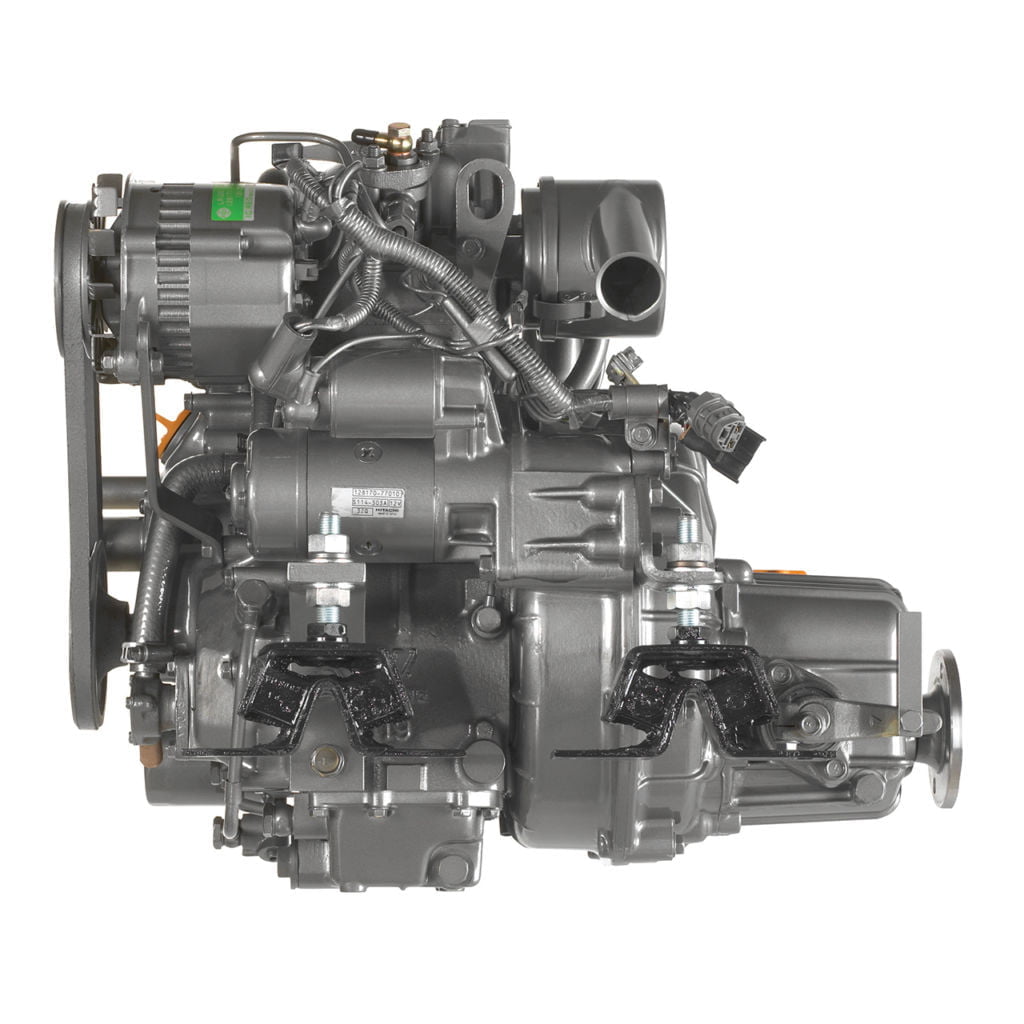

The YANMAR 2YM15 is a naturally aspirated 2-cylinder engine that can be paired  with either a marine gear or sail-drive unit, making it ideal for use on sailboat crafts.

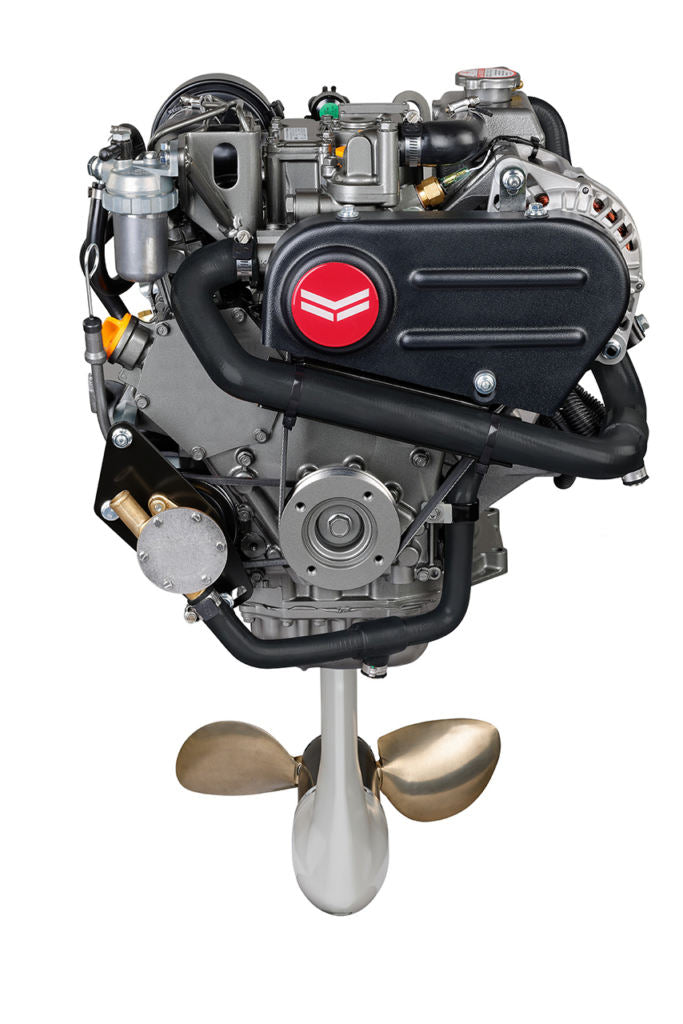

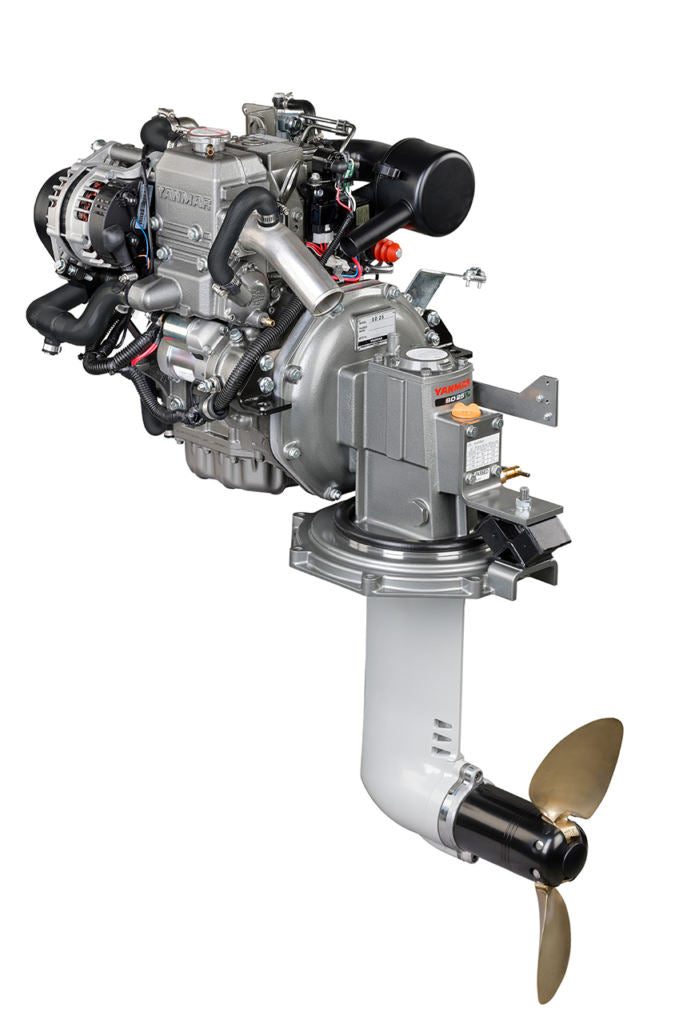

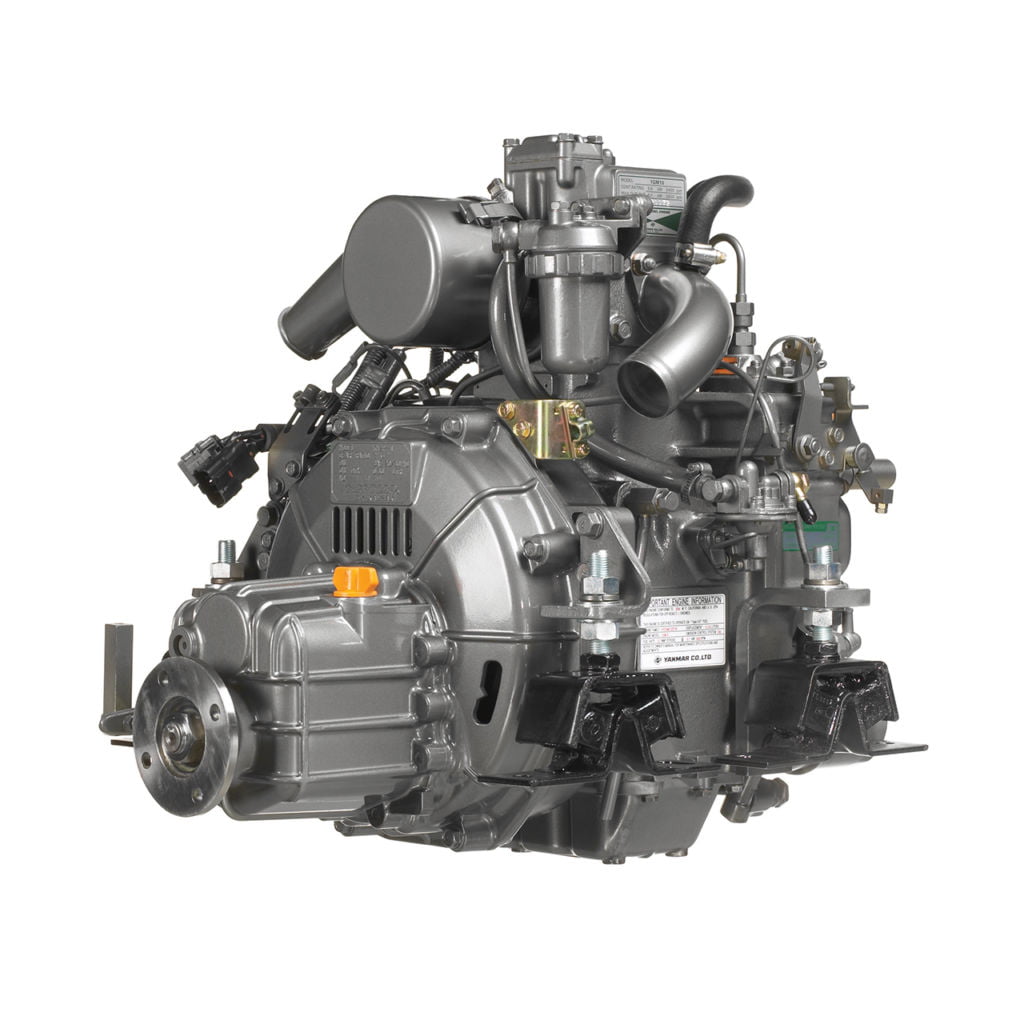

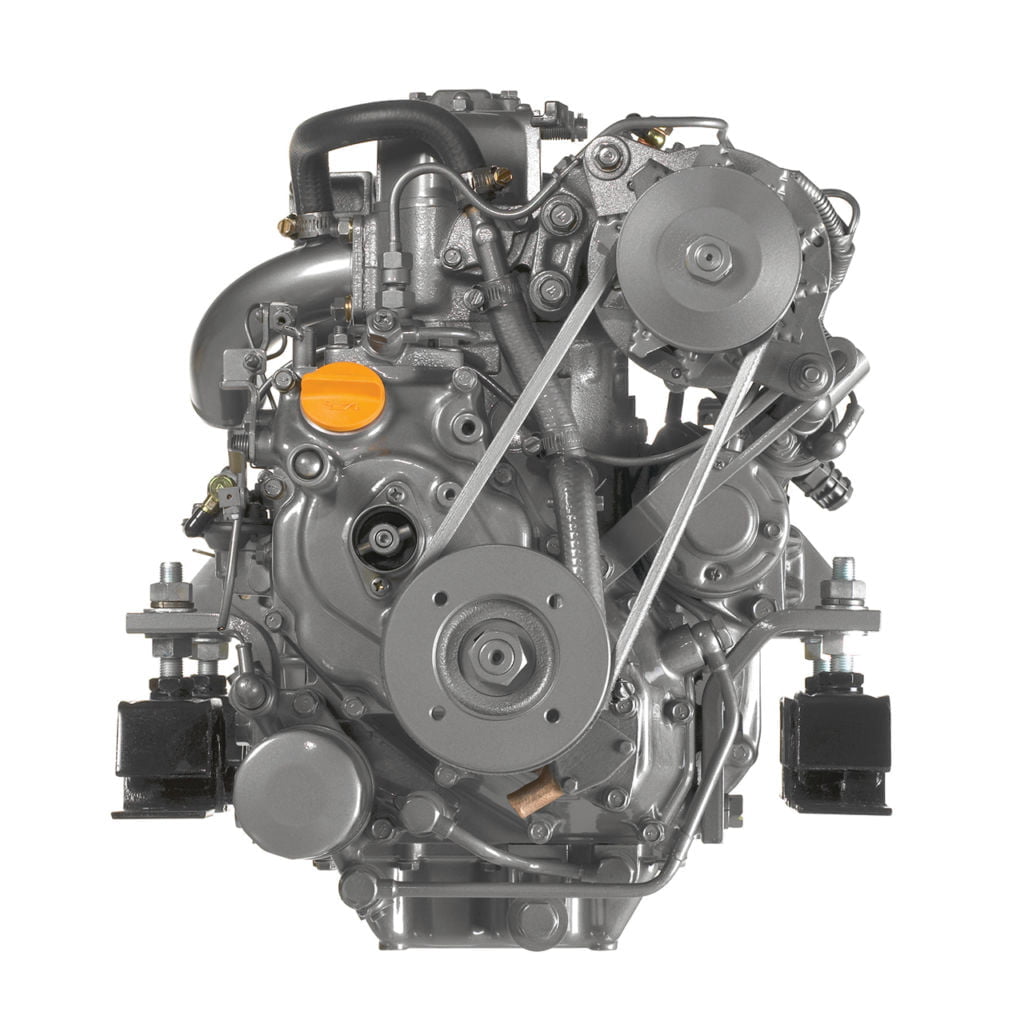

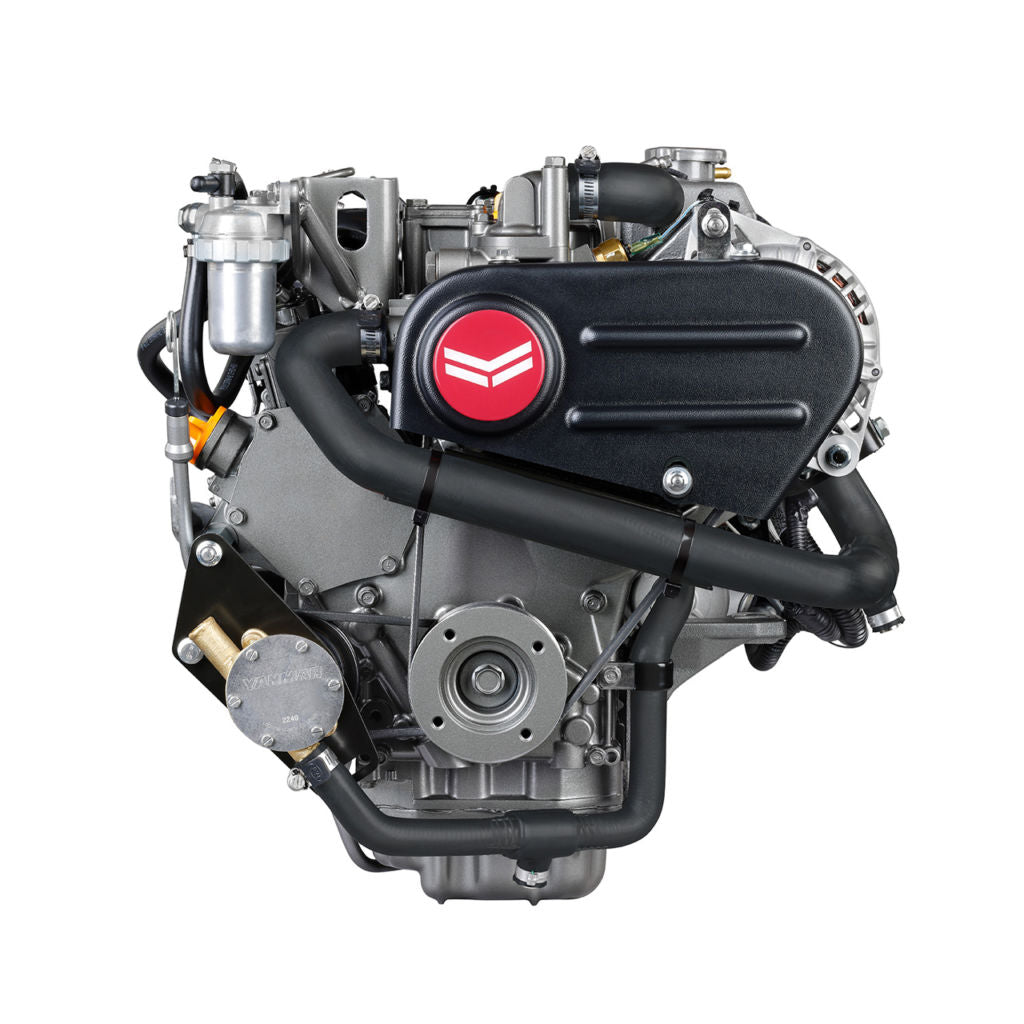

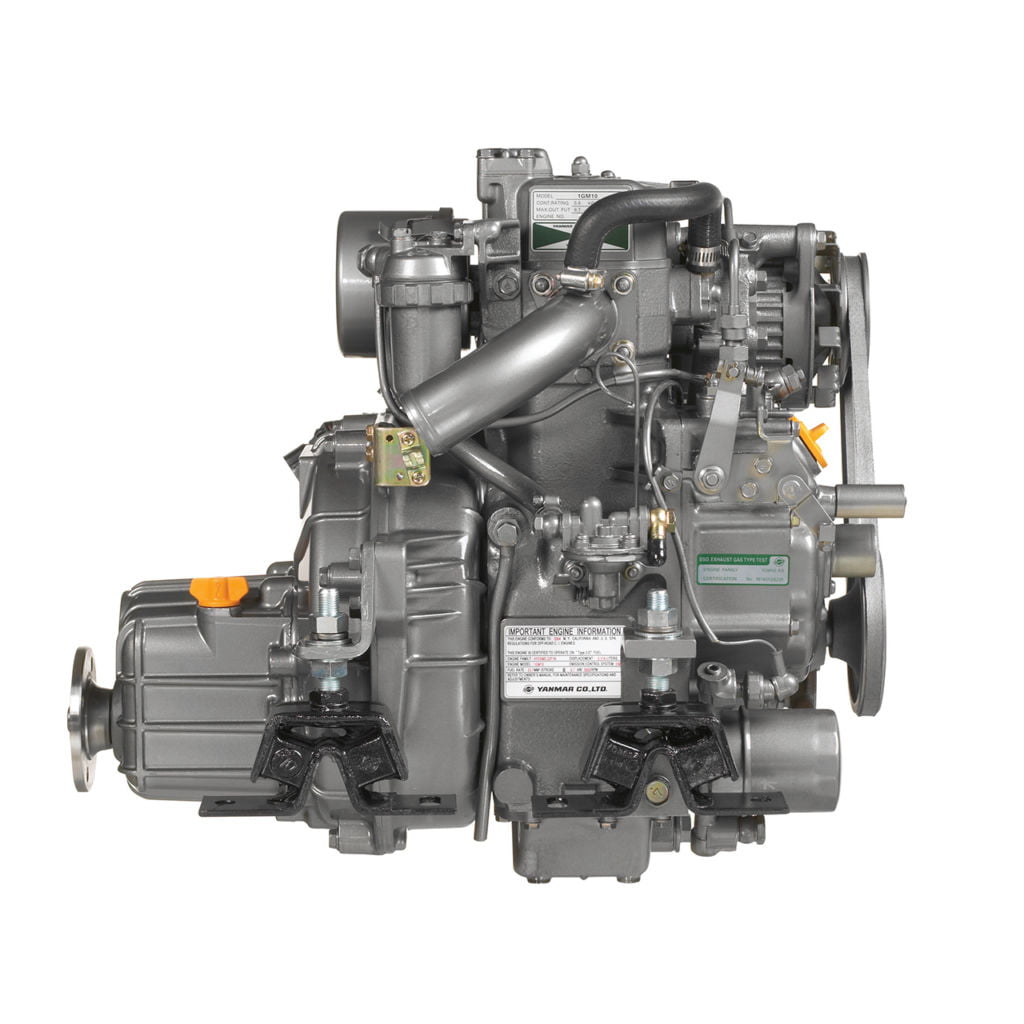

(Optional Transmissions and Drives shown in images)

Reliable and Easy to Maintain

Discover the many advantages of the YANMAR 2YM15!
Designed for smaller sailboats and pleasure craft, this mechanical engine delivers easy maintenance, low noise, and reliability.
With a 3-model line-up, this proven solution offers exceptionally quiet operation and low emissions, meeting EPA regulation Tier 3 marine compliance since 2009. Its simplistic design ensures effortless maintenance and high durability, making it the perfect choice for new builds and repowering.

Features

  • An ideal solution for smaller recreational boats, the YM series diesel engines are four-stroke, swirl pre-combustion chamber units equipped with liquid coolant systems.
  • All naturally aspirated, the full range of 2-cylinder and 3-cylinder models feature indirect injection, in-line pump combustion systems.
  • The engines are equipped with a marine gear or sail drive unit.
  • The YM series of mechanical, lower output engines complements the largest common rail recreational and light-duty commercial diesel engine line-up on the market.

Standard Engine Package Includes

  • Exhaust mixing elbow [L-type]
  • Alternator 12V – 125A
  • B20 panel
  • Flexible mounts
  • Expansion tank for fresh water cooling system
  • Electric stop solenoid
  • Belt safety cover

Specifications

Rated output 10 kw / 14 mhp
Rated Speed 3600 rpm
Displacement 0.57 L / 34.7 cu. in
No. of cylinders 2 cylinders
Cylinder Bore x Stroke 70 mm x 74 mm / 2.75 in x 2.91 in
Combustion system Indirect Injection, In-line Pump
Aspiration Natural
Alternator1 2V - 125A
Dry weight without gear 103 kg / 227 lbs
Dimensions 613 mm x 463 mm x 600 mm
Controls Mechanical
RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC


NOTES:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM2P-1 marine gear
(Dimensions may vary with other gears/elbow)

Frequently Asked Questions

Captain's Locker is a Yanmar Gold Dealer, specializing in Yanmar Engine and Parts Sales. Our engine terratory covers Southern California and Parts territory is the Entire Western United States, British Columbia down to Baja.

Engines can typically ship or be delivered in 1-2 weeks depending on availability at the time of ordering. All engines are bench ran prior to leaving the Yanmar facility.

Included parts & accessories vary by engine model and package. Please contact us for more details when building your engine package.

For your 2 Year engine warranty to be valid an authorized Yanmar dealer must install the engine. For help finding your closest Yanmar installer please contact us.
