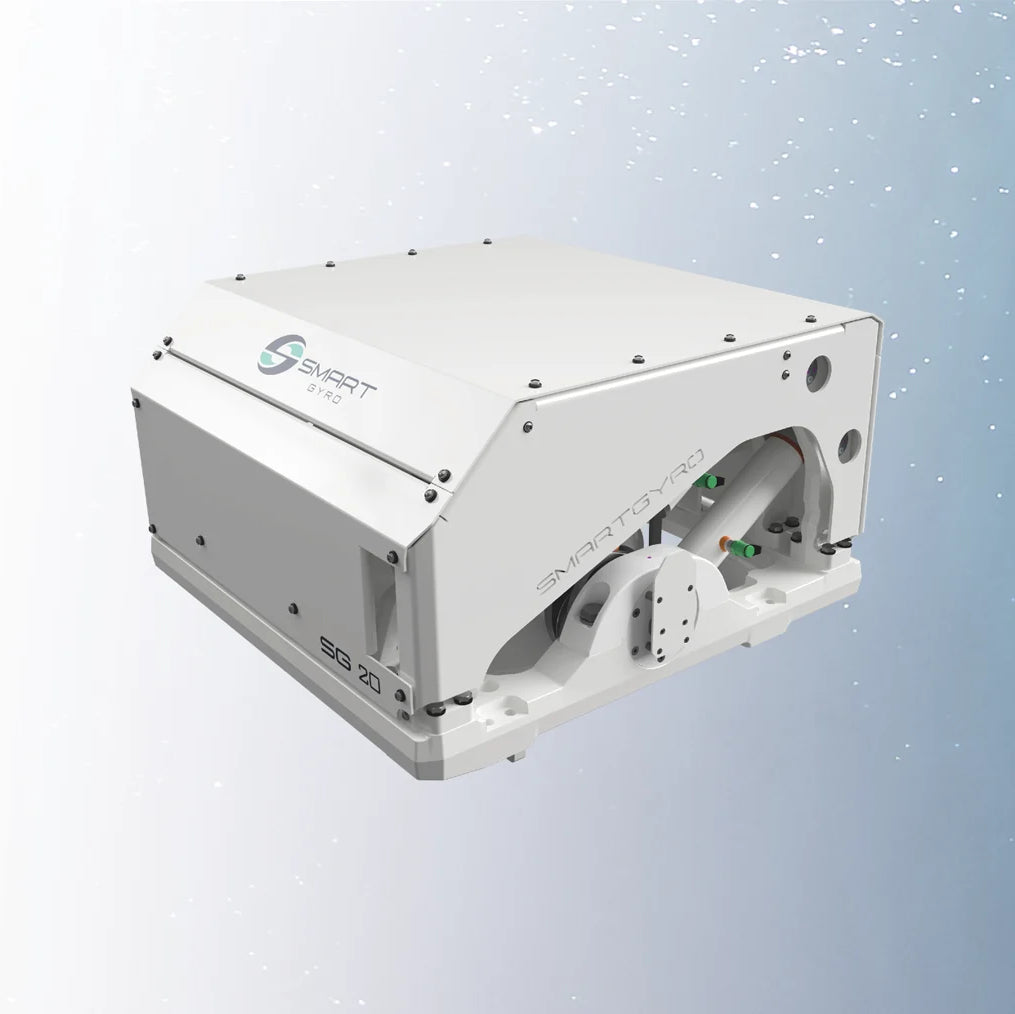

Smartgyro SG20 is the gyro stabilizer of choice for boats from 45-55 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.
- Target Boat - 45 – 55’ or up to 25 tons
- Maximum rated speed - 9.500 RPM
- Angular momentum - 5.900 Nms at max. rated speed
- Max. Anti-rolling torque - 15.500 Nm at max. rated speed
- Input voltage (AC) - 115V nominal, 50/60 Hz, single phase or 220V nominal, 50/60 Hz, single phase
- Control DC power input - 12 Vdc
- Envelope dimensions - 0.76 x 0.77 x 0.65 m [29.9 x 30.3 x 25.6 in]
- Weight - 495 kg [1091 lbs]
